How to call ExifTool from Delphi*

*Delphi v7

Introduction

Some have asked for ExifToolGUI source code. The main reason why I can't do that, is:
  • In GUI, some 3rd party code is used, which is not open source.
    • And the reason why I probably wouldn't do that (even if possible), is:
  • If at all, something entirely different than GUI should be made.

    • I made GUI, because there was no similar free solution at that time (and I desperately wished to use ExifTool). In my opinion, making GUI just "different" isn't a challenge, nor is worth to spend time doing this -at the end, it would be just another GUI.

    Calling ExifTool from Delphi

    Exiftool unit

    Here's a unit, which can be used as a basis for further enhancements:

    unit ExifTool;

interface
uses Classes;

var
  ETout, ETerr: TStringList; //data from ExifTool will be here

function ExecuteET(const ETcmd,WorkDir: string): Boolean;

implementation
uses Windows;

function ExecuteET(const ETcmd,WorkDir: string): Boolean;
const
  szBuffer=255;
var
  StartupInfo: TStartupInfo;
  ProcessInfo: TProcessInformation;
  PWorkDir: PChar;
  SecurityAttr: TSecurityAttributes;
  PipeOutputRead: THandle;
  PipeOutputWrite: THandle;
  PipeErrorsRead: THandle;
  PipeErrorsWrite: THandle;
  Succeed: Boolean;
  Buffer: array [0..szBuffer] of Char;
  BytesRead: DWORD;
  Stream: TMemoryStream;
begin
  //=== Usual steps to initialize data for CreateProcess:
  FillChar(Buffer,SizeOf(Buffer),0);
  FillChar(ProcessInfo, SizeOf(TProcessInformation), 0);
  FillChar(SecurityAttr, SizeOf(TSecurityAttributes), 0);
  SecurityAttr.nLength := SizeOf(SecurityAttr);
  SecurityAttr.bInheritHandle := true;
  SecurityAttr.lpSecurityDescriptor := nil;
  CreatePipe(PipeOutputRead, PipeOutputWrite, @SecurityAttr, 0);
  CreatePipe(PipeErrorsRead, PipeErrorsWrite, @SecurityAttr, 0);
  FillChar(StartupInfo, SizeOf(TStartupInfo), 0);
  StartupInfo.cb:=SizeOf(StartupInfo);
  with StartupInfo do begin
    hStdInput:=0; hStdOutput:=PipeOutputWrite; hStdError:=PipeErrorsWrite;
    wShowWindow:=SW_HIDE;
    dwFlags:=STARTF_USESHOWWINDOW or STARTF_USESTDHANDLES;
  end;
  if WorkDir='' then PWorkDir:=nil else PWorkDir:=PChar(WorkDir);
  ETout.Clear; ETerr.Clear;

  //=== Here is where ExifTool is called:
  if  CreateProcess(nil, PChar(ETcmd), nil, nil, true,
    CREATE_DEFAULT_ERROR_MODE or CREATE_NEW_CONSOLE or NORMAL_PRIORITY_CLASS,
    nil, PWorkDir, StartupInfo, ProcessInfo)
  then begin      //=ExifTool started successfully:
    result:=true;
    CloseHandle(PipeOutputWrite);
    CloseHandle(PipeErrorsWrite);
  end else begin  //=ExifTool not started (because, i.e. not found):
    result:=false;
    CloseHandle(PipeOutputRead); CloseHandle(PipeOutputWrite);
    CloseHandle(PipeErrorsRead); CloseHandle(PipeErrorsWrite);
  end;

  if result then begin
    //= Get output written by ExifTool(tag names/values):
    Stream:=TMemoryStream.Create;
    try
      repeat
        succeed:=ReadFile(PipeOutputRead,Buffer,szBuffer,BytesRead,nil);
        if not succeed then break;
        Stream.Write(Buffer,BytesRead)
      until (BytesRead=0);
      Stream.Position:=0; ETout.LoadFromStream(Stream);
    finally Stream.Free; end;
    CloseHandle(PipeOutputRead);
    //= Get errors written by ExifTool (if any):
    Stream:=TMemoryStream.Create;
    try
      repeat
        succeed:=ReadFile(PipeErrorsRead,Buffer,szBuffer,BytesRead,nil);
        if not succeed then break;
        Stream.Write(Buffer,BytesRead);
      until (BytesRead=0);
      Stream.Position:=0; ETerr.LoadFromStream(Stream);
    finally Stream.Free; end;
    CloseHandle(PipeErrorsRead);

    WaitForSingleObject(ProcessInfo.hProcess,5000); //=5sec
    CloseHandle(ProcessInfo.hThread); CloseHandle(ProcessInfo.hProcess);
  end;
end;

initialization
begin
  ETout:=TStringList.Create;
  ETerr:=TStringList.Create;
end;

finalization
begin
  ETerr.Free;
  ETout.Free;
end;

end.

    Main program

    Here's example of how we call above function from "main" program:

    unit Main;

interface
uses
  Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
  Dialogs, StdCtrls, ExtCtrls;

type
  TForm1 = class(TForm)
    LabeledEdit1: TLabeledEdit;
    Button1: TButton;
    Memo1: TMemo;
    Label1: TLabel;
    procedure Button1Click(Sender: TObject);
  private
    { Private declarations }
  public
    { Public declarations }
  end;

var
  Form1: TForm1;

implementation
uses ExifTool;
{$R *.dfm}

var ETcmd:string;

procedure TForm1.Button1Click(Sender: TObject);
var i: smallint;
begin
  Memo1.Clear;
  ETcmd:=LabeledEdit1.Text;
  if ExecuteET('exiftool '+ETcmd,'') then with Memo1.Lines do begin
    Append('*** ExifTool output:');
    if ETout.Count>0 then
      for i:=0 to ETout.Count-1 do Append(ETout[i]);
    Append('*** ExifTool errors:');
    if ETerr.Count>0 then
      for i:=0 to ETerr.Count-1 do Append(ETerr[i]);
    Append('^^^ END');
  end else ShowMessage('exiftool.exe not found!?');
end;

end.

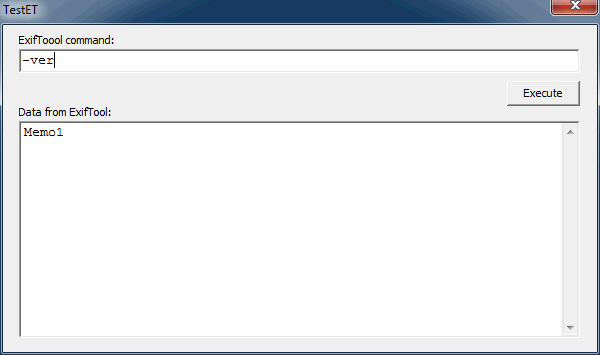

    -which reflects something like this:




    In above example, because second ExecuteET parameter (WorkDir) is empty, command must include path to image file which we wish to read or modify. So ExifTool command must look like:
    -Exif:all c:\myPhotos\test.jpg
    or
    -Exif:Artist="My name" "c:\Photo album\Family\*.jpg"
    -here we also needed quotes, because tag value (and path) contains spaces.

    However, from our "main" code, we can call ExecuteET function by specifying "working directory". By doing something like:

    ...
var ETcmd, WorkDir: string;
...
  WorkDir:='c:\Photo album\Family\';     // -no quotes needed now
  ETcmd:='-Exif:Artist="My name" *.jpg'; // -path not needed now
  if ExecuteET('exiftool '+ETcmd, WorkDir) then ...
...

    That's it.

    Bogdan Hrastnik
    September, 2011
