Writting metadata: To raw or not to raw?


This article is ment for those, who think about saving metadata directly into raw files, but are not sure about "risks" involved.
One can read all over the web, how it's "better not to" do that. And when asked why not, we get answers like: it's not safe, (in future) you might not be able to open raw files anymore, better not to mess with proprietary files, one simply doesn't modify "original" files, etc. If such answers are enough to convince you, then don't read further!

In this article, I'll try to explain what's all about -and then you decide. And if you decide, still not to write metadata into raw files, you will at least know why you made that decission.
Here, we will mostly talk about Canon CR2 raw files -reason is simple: as Canon camera owner, I have access to Canon software, so I could make all necessary checks over the years. However, as you will see, all what's written here, also applies for most other raw formats (NEF, DNG,..). The only difference is, there are things, I can't check without having (for example) Nikon raw software.

Almighty TIFF

First, we need to distinguish between TIFF file format and TIFF image data. TIFF file format is a standard, which describes how various data inside file must be organized, to be readable later. So, very often we can read, that TIFF is actually a "container" which can hold various data about image, incl. image itself.
Inside TIFF file, data is divided into two major groups: metadata group and image data group. This is not entirely correct (as we will see later), but it makes easier to understand:

OffsetContent
0000TIFF header
000xMetadata
....
000yImage data
....
We can imagine above table as a directory, which contains a text file named Header, and two subdirectories having names Metadata and Image data (a directory structure inside TIFF file, so to speak).

TIFF Header

It's obvious, that it's not enough to just give some file *.TIF sufix: content must match TIFF specification. To ensure this, at the beginning of every TIFF file, there's so called Header. This header only occupies few bytes and his main purpose is, to make initial checks possible (thus answering: does file really contains TIFF data?):

000049 49 2A 00 08 00 00 00
0008nn nn nn nn nn nn nn nn ..
-as we can see (first row above), header contains only eight bytes. Let's see the meaning of them:

4949 -first two bytes are two "I" (capital "i") characters. In this case, it means the whole file is written in so called Intel byte order.
2A00 -next two bytes are TIFF signature (saying: yes, this is TIFF content).
08000000 -these four bytes contain the offset to first "Image File Directory" (relative from beginning of file). That is, data here points to IFD (later about IFD). In this case, it points to address $0008. Note: sign $ means number is shown in hex notation.

Instead of using Intel byte order, TIF can use Motorola byte order to store data. In this case, the the same header would look like this:

00004D 4D 00 2A 00 00 00 08
0008nn nn nn nn nn nn nn nn ..
-here first two bytes represent two "M" characters, which notifies, that all data inside TIFF file is stored in Motorola byte order. For our purpose it is enough to know, that in this case, all data is "reversed" bytewise: instead of $2A00, we have $002A, and instead of $08000000, have $00000008 -something, only programmers should care about.
In text that follows, Intel byte order TIF file is assumed (unless noticed otherwise).

Let's sumarize: if first four bytes contain value 49 49 2A 00 or 4D 4D 00 2A, then we can assume, we are dealing with valid TIFF file.

IFD: Image File directory

Above we said, that third value points to IFD. In our case this value is 08000000, saying: IFD begins at offset $00000008 from begining of the file. Thus, if we skip first eight bytes in this file, we will land at beginning of IFD segment. Now, we must be aware, that IFD doesn't always start at "address" $00000008 -if that would be the case, we wouldn't need that value at all.
Because inside TIFF file, more than one IFD can exist, first IFD is called IFD0, next is IFD1, etc.

IFD is area where metadata is stored. The content looks like:

000814 00
000A00 01 04 00 01 00 00 00 B0 04 00 00
001601 01 04 00 01 00 00 00 20 03 00 00
...... .. .. .. .. .. .. .. .. .. .. ..
00FA00 00 00 00 .. .. ..
-here, only the beginning and ending of IFD is shown. Let's look what's inside.

1400 -first two bytes at beginning of IFD contain the number of IFD entries (items inside IFD). In our (Intel) case, here's number $0014, which is 20 decimal, and thus IFD contains 20 entries. After that value, actual entries start. In our case, we have twenty of them and each entry is always 12 bytes long.

Let's "anylize" first entry in IFD:
0001 -is Tag ID. In our case it's value is $0100, and means "here, image width is stored".
0400 -data type. Here we have value $0004 (=4 decimal), which means "value is saved in four bytes".
01000000 -count of values. In our case, there's only one value.
B0040000 -actual value. Here we have $000004B0 (1200 decimal) telling us the width of image in pixels.
-hey, we just "decoded" one metadata tag! If interested, you can find the rest of Tag ID's (and decoding mechanism) in TIFF specifications.

What's left is, the field (four bytes long) after the last IFD entry (here, at offset $00FA). This field contains pointer (offset) to the next IFD segment. In our case, this field contain value 00000000, indicating no further IFD exist.

Ok, we have seen example of how 4 bytes long (meta)data can be stored inside IFD. But what if we need to store something where more space is needed.. like camera name, for example? In this case, inside IFD0, there will be entry, like:

...... .. .. .. .. .. .. .. .. .. .. ..
005210 01 02 00 0E 00 00 00 40 FD 00 00
...... .. .. .. .. .. .. .. .. .. .. ..
00FA00 00 00 00 .. .. ..
...... .. .. .. .. .. .. .. .. .. .. ..
FD4043 61 6E 6F 6E 20 45 4F 53 20 36 30 44 00 .. ..

-now we can see, that IFD entry points to address inside file, where camera name is saved (in our case, this address is $0000FD40). And because IFD contains pointer, there's also the size (length) of data, here $0E bytes (=14 decimal).
If we now look on content at address $0000FD40, and interpret values there as characters, we get "Canon EOS 60D" =Exif:Model data.

Here we examined two kind of data in IFD: numeric value (image width) and array of characters (camera model). Of course, IFD entries can point to many kind of data. For example, IFD entry can point to "ExifIFD" segment (which is similar to regular IFD, however it contains another data) or to Xmp data segment, or it can point to "pure" image data, etc.

All above is not ment to be metadata decoding manual, nor I like to complicate things just for fun... The thing is, only if you really understand above "system", you will also understand what's "behind" TIFF.

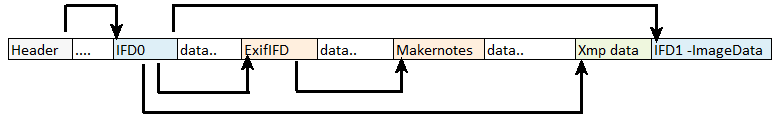

Anyway, here's a simplified TIFF structure (one of many possible):


Conclusions

Now, we are ready to make some conlusions... For example, to delete some metadata tag, we need to delete particular IFD entry and (if needed) the data at which entry pointed. At the same time, all offset values after deleted IFD entry, must be checked and recalculated where necessary (otherwise offset values could point to false addresses) -it's similar in case, if we add some metadata tag or change value/content of existing metadata tag.
If we sumarize further: TIFF standard predicts various data inside file and it also predicts that data inside TIFF file will be modified. That is, we know (from above), that after resizing image (=changing "pure" image data), tag "ImageWidth" is updated by image editing software.

We also know, that IFD entry can point to many kind of data, i.e. Exif, Iptc, Xmp,.. And again: TIFF standard defines how all that data is "connected".
One doesn't need to be a genious to conclude, that it's up to software (image/metadata editor), to manage all those connections inside TIFF. Yes, connections: because, as long we talk about manipulating metadata inside TIFF, that's all what's about.

For purpose of this article, structure of image data is not relevant -all we need to know is, there/somewhere must be an IFD entry, pointing to that data.. and there must be an entry telling how big that data is.. etc.

Do you edit metadata inside TIFF?

If you read this article, you probably do that (some are doing that without even knowing). But are you aware of possible risks involved? I mean, now we know, that i.e. single wrong written offset value can lead to total loss of image data!
Yeah, there's always a risk involved (lightning can strike in PC)... But most image editors seems to handle that stuff prety well. Ok, let's say it: we modify metadata inside TIFF files without thinking much about.

Where's the article about raw files?

Above -you have just read it!

Yes, camera manufacturers aren't that stupid to reinvent the wheel. They use what's there and is proven to work well. The main difference between all those files (TIF, CR2, DNG, NEF,..) is, how image data is "encoded". Because everything else is (almost) the same: Header, IFD segments, ExifIFD, Iptc, Xmp,.. all that is there, and follows the same TIFF principle.

Another TIFF file

Here's an example:

000049 49 2A 00 10 00 00 00
000843 52 02 00 14 B7 00 00
001011 00
001200 01 03 00 01 00 00 00 40 14 00 00
001E01 01 03 00 01 00 00 00 80 0D 00 00
...... .. .. .. .. .. .. .. .. .. .. ..
00D269 87 04 00 01 00 00 00 B2 01 00 00
00DE3E B6 00 00
00E2.. .. .. .. .. ..
-as we became "experts", we can see what's there just by looking at content:

At the beginning of the file (first line), there's known TIFF Header, which points to IFD0 (in this case, at address $00000010).
Right now, we don't know the meaning of content at address $00000008 (second line), so we skip that and go to start of IFD0. Here we see IFD0 contains $0011 (=17 decimal) entries. First entry contains ImageWidth, second entry ImageHeight, etc. Nothing new actually.
But that second row of data still bothers us... Now, if we decode first two numbers there ($43 and $52) as characters, we get:
43 52 = C R
The next two bytes, taken as single data, represent:
02 00 = 2

CR2..? Yes, we are looking at Canon raw file! And the next four bytes contain offset to address $0000B714, where we can find another IFD section, containing IFD entries... and finally: one of the entries there, points to raw image data.
We just decoded (part of) metadata inside Canon 60D raw file. Classy, huh? And all that by simply following "the TIFF book".

What about "proprietary" MakerNotes metadata?

Let's take a look at above IFD0 entries of our CR2 file again. There's an entry (the last one, in our case), with TagID:
69 87
-this TagID value ($8769) says, entry contains pointer to ExifIFD section, which (in our case) starts at address $000001B2:

...... .. ..
01B226 00
01B49A 82 05 00 01 00 00 00 80 03 00 00
...... .. .. .. .. .. .. .. .. .. .. ..
02747C 92 07 00 94 B0 00 00 D8 03 00 00
...... .. .. .. .. .. .. .. .. .. .. ..
037C00 00 00 00
00E2.. .. .. .. .. ..

-here, ExifIFD contains $0026 (=38 decimal) entries, and one of them has TagID value of $927C. According to Exif specification, tagID value $927C says: "this tag points to MakerNote metadata". In our case, MakerNote occupies $0000B094 bytes (=45204 decimal) and starts at address $000003D8.
Up to now, everything was conform with TIFF/Exif standard. Here however, it ends. For most raw image files, content of MakerNote section is officially unknown teritory.
But, curious as we are, let's see what's there:

...... .. ..
03D829 00
03DA01 00 03 00 31 00 00 00 CA 05 00 00
03E602 00 03 00 04 00 00 00 2C 06 00 00
...... .. .. .. .. .. .. .. .. .. .. ..
042209 00 02 00 20 00 00 00 B8 06 00 00
...... .. .. .. .. .. .. .. .. .. .. ..
05C600 00 00 00
05CA.. .. .. .. .. ..

-we can recognize, that in case of Canon raw file, MakerNote points to a structure, which is equal to regular IFD! And that being the case, manipulating that metadata is as simple as working with TIFF/Exif metadata. However, there's a catch...
Canon didn't published the meanings of TagID values there. That is, we can see, that i.e. first entry (TagID=$0001) points to address $000005CA, and that data there is occupying $00000031 bytes, but we don't know the meaning of that data -officially, nobody knows that! ..except ExifTool.

Over the time, many (but not all) of MakerNote content has been "decoded". And once decoded, modifying particular metadata tag is as "simple" as doing that with TIFF/Exif tags. For the last time (are you bored?), let's look at IFD entry at address $0422 above:

$0009 -tagID (we don't know the puprose of it ..yet).
$0002 -defines an array of characters (we learned that from TIFF spec).
$00000020 -array contains 32 characters.
$000006B8 -address (offset) where characters are stored.

Remember, how we "decoded" Exif:Model (camera name) at the beginning of this article? Same thing here... in this case however, data contains.. exactly! -TagID $0009 is Canon:OwnerName.

It seems to be so simple.. the principle is simple. But that doesn't mean it's easy: to write metadata, it requires a lot of programming discipline and metadata knowledge.

To raw or not to raw?

Above are the facts and it's up to you to decide. If interested about other raw files, you can check them either by using some "Hex viewer". Or even better, with ExifToolGUI, where you export metadata into html file.
If nothing else, you at least realized, that modifying metadata doesn't alter image data at all.

My personal opinion (if you're interested)
Image metadata is data about image -it's actually part of image data. And as such, it belongs inside image file. Saying that, I refuse to use software, which isn't capable to write metadata safe directly inside image files or read metadata I've saved inside image files previously.
Using ExifTool, I write metadata inside my Canon raw files for years successfully. And I don't need any additional (expensive) software, to keep track of where my metadata is -it's always there, where image file is.

Bogdan Hrastnik
October, 2011


Here are few screenshots of small starting parts of various raw files (as generated by ExifTool):

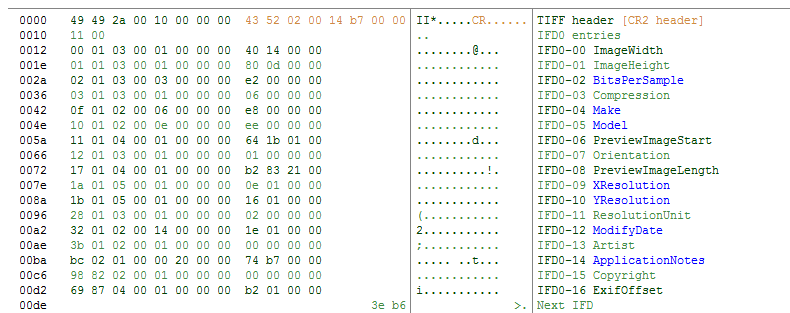

Canon CR2:


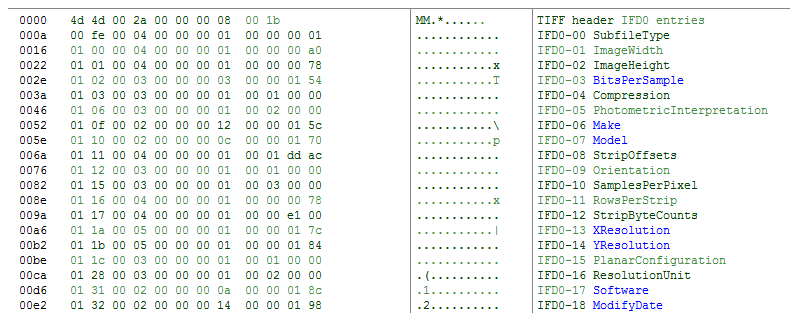

Nikon NEF:

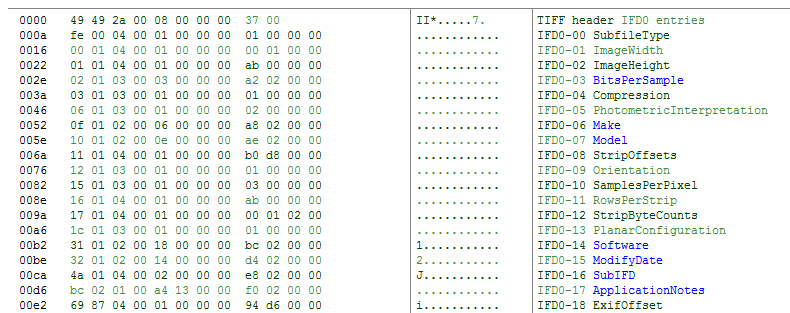

Adobe DNG:

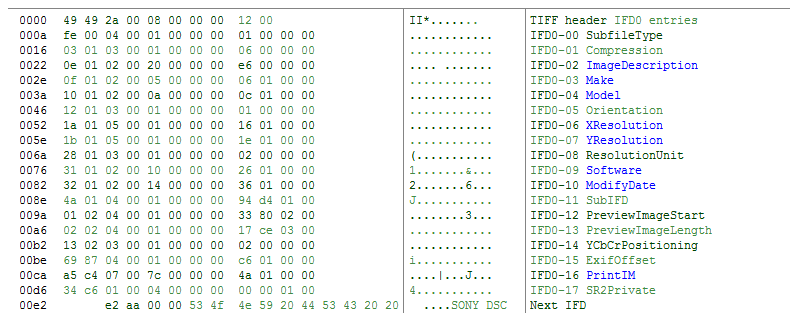

Sony ARW:
